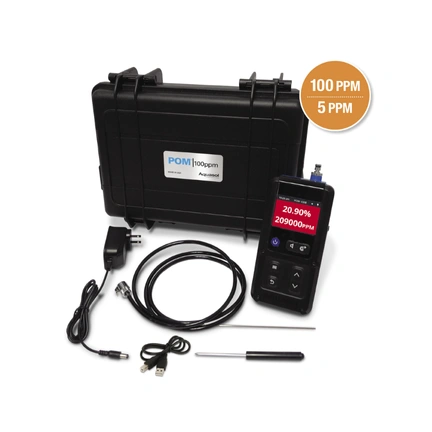

POM®- 100B HIGH PURITY WELDING APPLICATIONS

Bluetooth APP Enabled Operation

• Real-time Operation via Android, iOS and Windows App
• The POM®-100B is equipped with a BLE transmitting device which allows the oxygen monitor to send the oxygen readings wirelessly to any BLE device (i.e. Smartphone/Laptop).

Note

• Compatible with companion Apps available on Android, iOS and Windows
• Device MUST be equipped with BLE or purchased separately
• To save unlimited readings, POM®-100B MUST be connected to device

Unlimited Data Logging Capabilities in Real Time

With POM®-100B you will be able to create unlimited real time records of oxygen levels for critical welding applications

• The main view contains current oxygen readings with clearly visible Intelligent Color Notification System
• Access the offline logs stored on the unit, connect the unit to the computer using the provided USB printer cable
• The unit will store a log of every data point in a CSV (comma-separated value) file with a default name of MM-DD-YY.csv

Intelligent Color Notification System

• This smart system displays red, amber and green for a quick visual on operator set parameters. The traffic light’s universal appearance is easy and quick for operators and inspectors to understand, reducing the chance of error.
• Eliminate guesswork as Alarms can be set to desired O2 PPM value.
• Acceptable oxygen levels can be customized to the user specifications.

Factory Calibrated and Certified

• The POM®-100B Oxygen Monitor is factory calibrated and certified, accompanied by a dated certificate of authentication
• Meets requirements specified by the National Institute of Standards and Technology

2 Point Calibration Model:

• Calibrates using ambient air and 99.999% Argon.

Types & Sizes

POM®-100B / POM®-5B KIT TYPES AND SIZES

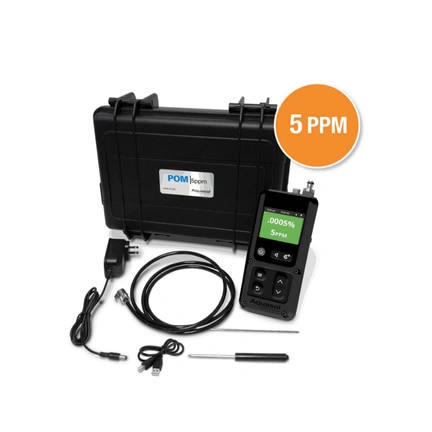

POM®- 5B ULTRA HIGH PURITY WELDING APPLICATIONS

Bluetooth APP Enabled Operation

• Real-time Operation via Android, iOS and Windows App
• The POM®-5B is equipped with a BLE transmitting device which allows the oxygen monitor to send the oxygen readings wirelessly to any BLE device (i.e. Smartphone/Laptop)

Note

• Compatible with companion Apps available on Android, iOS and Windows
• Device MUST be equipped with BLE or purchased separately
• To save unlimited readings, POM®-5B MUST be connected to device

Unlimited Data Logging Capabilities in Real Time

With POM®-5B you will be able to create unlimited real time records of oxygen levels for critical welding applications

• The main view contains current oxygen readings with clearly visible Intelligent Color Notification System
• Access the offline logs stored on the unit, connect the unit to the computer using the provided USB printer cable
• The unit will store a log of every data point in a CSV (comma-separated value) file with a default name of MM-DD-YY.csv

Intelligent Color Notification System

• This smart system displays red, amber and green for a quick visual on operator set parameters. The traffic light’s universal appearance is easy and quick for operators and inspectors to understand, reducing the chance of error
• Eliminate guesswork as Alarms can be set to desired O2 PPM value
• Acceptable oxygen levels can be customized to the user specifications

Factory Calibrated and Certified

• The POM®-5B Oxygen Monitor is factory calibrated and certified, accompanied by a dated certificate of authentication
• Meets requirements specified by the National Institute of Standards and Technology

2 Point Calibration Model:

• Calibrates using ambient air and 99.999% Argon

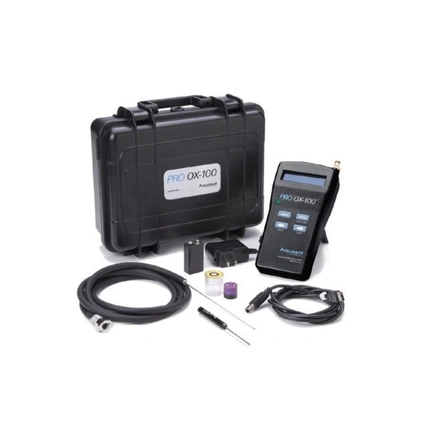

PRO OX®-100 KIT PROGRAMMABLE DIGITAL OXYGEN MONITOR

Types & Sizes

PRO OX-100 Kit Programmable Digital Oxygen Monitor

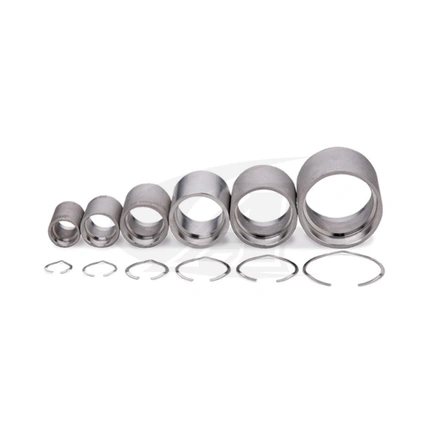

STEELSPACE® CERTIFIED 316L STAINLESS STEEL SOCKET WELD SPACER RING

Traditional Design

• Constructed from high quality 316L stainless steel, one of the most common stainless steels used in the industry
• Known as the “marine grade” due to its increased resistance to chloride corrosion
• Provides the 1/16” (1.6 mm) minimum gap required by ANSI 31.1, Section III, ASME, US Navy and Military codes
• Spring tension holds rings securely in place
• Hollow center enables viewing during welding
• Becomes permanent part of the joint

Increases Efficiency and Savings

• Time and labor intensive tasks of scribing, measuring and fitting are completely eliminated
• Weld accuracy is dramatically improved vs. manual processes
• Eliminate and reduce cracked welds, saving money on costly repairs and replacement material

Types & Sizes

SteelSpace® Certified 316L Stainless Steel Socket Weld Spacer Ring
