SOLUSHIM® WATER SOLUBLE ALIGNMENT STICKS

SOLUSHIM® WATER SOLUBLE ALIGNMENT STICKS
SOLUSHIM® WATER SOLUBLE ALIGNMENT STICKS
Brand : 37

SOLUSHIM® WATER SOLUBLE ALIGNMENT STICKS

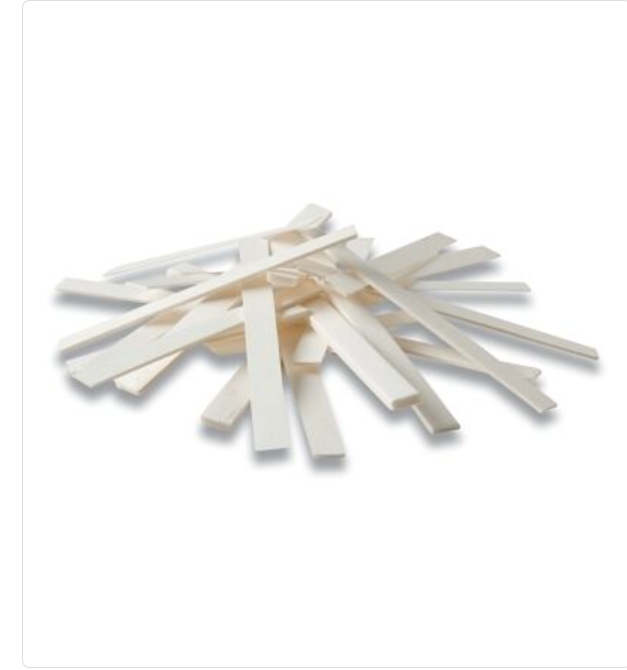

SoluShim Water Soluble Alignment Sticks are an innovative solution for maintaining precise gaps on plates, pipes, and flanges as required by AWS codes D1.1 – D1.6, and API 1101 pipe codes. When SoluShim is placed between a gap, it enables consistent pipe and seam spacing, enhancing the operator’s overall efficiency.

Comprised of EPA-approved Aquasol® Water Soluble Board, SoluShim is compatible with any metal and instantly begins to dissolve when introduced to water. This allows the sticks to be effortlessly removed from the welding fit up, leaving behind no residue that could compromise the weld quality. Compared to metal rods, SoluShim is the superior choice for maintaining precise, even gaps throughout the weld fit-up.

Quantity
Request a Callback
Get Customized Price
Feel Free Contact

Call us : +966500584054

Explore Other Variants

SOLUSHIM® WATER SOLUBLE ALIGNMENT STICKS

SKU : TRAD-2927

SOLUSHIM® WATER SOLUBLE ALIGNMENT STICKS
IN STOCK

Conforms To AWS Code

  • SoluShim SS-2-38-16 and SS-4-38-16 provide 1/8″ minimum gap for plate/pipe projects as required by AWS Code D1.6/D1.6M Stainless Steel Structural Code, eliminating need for measurement and guesswork

Experience Contaminant-Free Welding

  • Made from EPA Approved Aquasol Water Soluble Composite Board
  • 100% biodegradable and environmentally friendly
  • Compatible with any metal
  • Highly durable, incompressible, pre-sized and uniform in thickness
  • Flexible structure can be manually shaped to form any angle with ease

Consistent Pipe & Seam Installation

  • Maintains required root gap during plate and pipe welding applications
  • Highly Incompressible
  • Eliminates holding rod while simultaneously welding
  • Eliminates root gap from shrinking with each tack weld
  • Sticks stay firmly in place throughout welding process

Simple Spacer Removal

  • Removal is fast and effortless using a light application of water to moisten and dissolve sticks, achieving a contaminant free weld
  • Leaves behind no harmful trace elements that can lead to post-weld contamination
  • Eliminates costly and timely post-weld grinding to remove metal spacers

Types & Sizes

SoluShim Water Soluble Alignment Sticks

Item No Thickness Size Packaging Case Pack
  English Metric English Metric
SS-2-38-132 1/32" 0.8 mm 3/8" x 2" 9 mm x 50.5 mm 100 pieces/polybag 10 polybags per case (1000 pieces)
SS-2-38-16 1/16" 1.6 mm 3/8" x 2" 9 mm x 50.5 mm 100 pieces/polybag 10 polybags per case (1000 pieces)
SS-2-38-332 3/32" 2.0 mm 3/8" x 2" 9 mm x 50.5 mm 100 pieces/polybag 10 polybags per case (1000 pieces)
SS-2-38-18 1/8" 3.3 mm 3/8" x 2" 9 mm x 50.5 mm 100 pieces/polybag 10 polybags per case (1000 pieces)
SS-4-38-132 1/32" 0.8 mm 3/8" x 4" 9 mm x 101 mm 50 pieces/polybag 20 polybags per case (1000 pieces)
SS-4-38-16 1/16" 1.6 mm 3/8" x 4" 9 mm x 101 mm 50 pieces/polybag 20 polybags per case (1000 pieces)
SS-4-38-332 3/32" 2.0 mm 3/8" x 4" 9 mm x 101 mm 50 pieces/polybag 20 polybags per case (1000 pieces)
SS-4-38-18 1/8" 3.3 mm 3/8" x 4" 9 mm x 101 mm 50 pieces/polybag 20 polybags per case (1000 pieces)
